Technical parameters of diesel generator set |
Generator set model:HQ35GF | Steady state voltage adjustment rate (%):≤± 1 |
Generator power:35kW | Voltage fluctuation rate (%):≤ ± 0.5 |
Power factor:COSΦ = 0.8 (lagging) | Transient voltage adjustment rate (%):+20 ~-15 |
Output voltage:400V/230V | Voltage stabilization time (s):≤1 |
Generator set current:63A | Steady state frequency adjustment rate (%):≤ ± 1 |
Rated frequency:50Hz | Frequency fluctuation rate (%):≤ ± 0.5 |
Rated speed:1500rpm | Transient frequency adjustment rate (%):+ 10 ~ -7 |
Fuel grade:(standard) 0 # light diesel (normal temperature) | Frequency stabilization time (S):≤3 |
Diesel generator size:1850*750*1600 (L*W*H mm) | Diesel generator fuel consumption (100% load):211g/kW·h |
Diesel generator weight:690kg | Diesel generator volume(LP7m):95dB(A) |
Technical parameters of diesel engine |
Diesel engines brand: UK | Cooling method: Closed water-cooling |
Diesel engines model: 1103A-33TG1440 | Oil supply method: direct injection |
Engine cylinder number: 3 / L Type | Speed regulation method: Mechanical |
Bore stroke: 105*127 mm | Intake method: Natural inhalation |
Compression ratio: 17.25:1 | Overload capacity: 110% |
Start method:DC 12V Electric start | Diesel engines Speed: 1500rpm |
Technical parameters of generator |
Generator brand:Wuxi Stanford | Protection level:IP23 |
Generator Model:PI144H1 | Wiring mode:Three-phase four-wire, Y-connection |
Generator power: 35kW | Adjustment method: AVR (Automatic Voltage Regulator) |
Rated voltage: 400V / 230V | Output frequency: 50Hz |
Insulation class: H class | Output factor: COSΦ = 0.8 (lag) |
Genset standard features |
1)、Direct injection internal combustion engine(Diesel); |
2)、AC synchronous generator(Single Bearing); |
3)、Water Radiator design for 40-45℃ Ambient belt-driven fans and guards; |
4)、Generation output air switch、Standard control panel; |
5)、Steel common base with shock absorber; |
6)、Dry-type air filter fuel filter,oil filter、starting motor、Self-charging alternator; |
7)、starter battery and connecting cables; |
8)、Industrial 9dB muffler and accessories; |
9)、The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet; |
Optional accessories(Extra charged) |
1)、Engine oil、diesel、water jacket、Anti-condensation heater |
2)、Battery floating charger |
3)、Self-protection unit/self-starting control panel |
4)、Tree-remote control panel |
5)、ATS AUTO-loaded transferring screen |
6)、Daily fuel tank、Integral fuel tank |

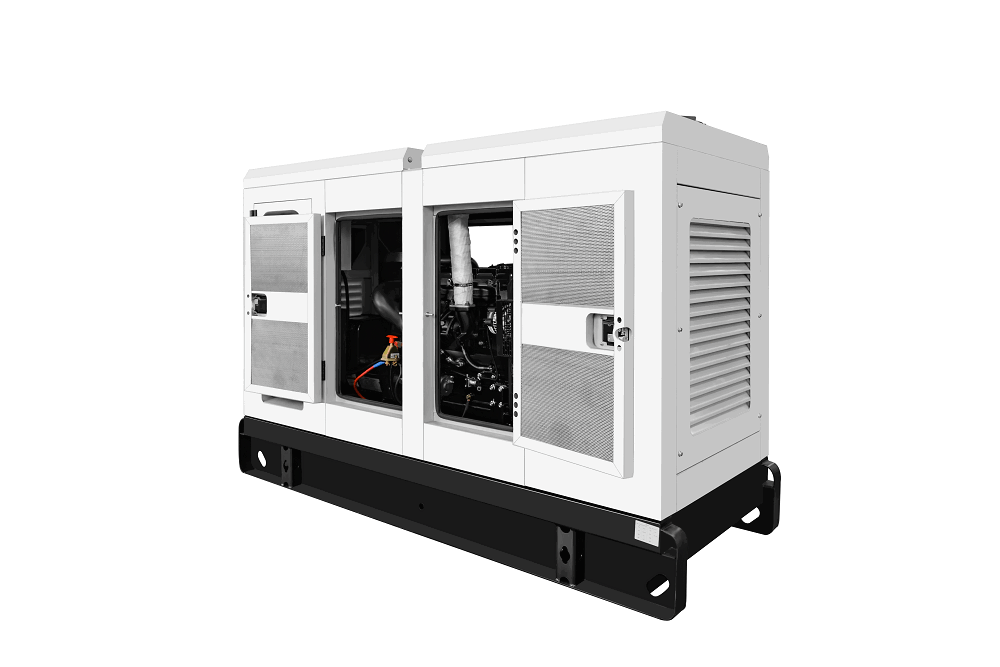

7)、Waterproof type(Cabinet) |
8)、Mobile trailer(Drip proof) |
9)、Mobile trailer(Silent type) |
2. High pressure oil pump | |
The fuel injection pump is one of the main components of the engine | |
Huaquan engine mainly uses Wuxi Weifu oil pump、Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、Nanyue Hengyang oil pump and so on. | |
3. Cooling water tank | |
Closed water tank, high heat dissipation efficiency Cooling protection, integrated design |
|
4. Electronic regulator | |
YC4D85Z-D20 standard | |
No need to manually adjust the throttle,The electronic regulator automatically adjusts the throttle,Stable speed, stable voltage and fuel saving. | |
5. ECU central control unit | |
YC4D80-D34、YC4D90-D34 Standard | |
The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission standards ,energy saving. | |
6.Camel battery | |
2S maintenance-free series | |
Low self-discharge rate -30℃ low temperature start Good electrical conductivity Improved starting power Strong power and long life high strength | |
7. Damping block | |
Adopt rubber car type shock absorber to reduce the vibration of the unit, reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more durable, and prevents loosening during operation, and reduces the noise caused by vibration. | |
8. Pure copper brushless motor |
Strong power and lengthened silicon core | |
Pure copper brushless motor |
Stronger conductivity, eliminating the shortcomings of brush motors that often replace carbon brushes or do not generate electricity for a long time | |
Maintenance-free, stable operating voltage, and sufficient power output. | |
9. Plastic spray base frame |
5mm thick channel steel base frame,multi-fold bending, enhance the ability to withstand impact. | Independent research and development of the chassis shape, unique gaps, effectively prevent water accumulation. | Pickling and phosphating before spraying greatly extend the service life compared to direct spraying. |
LED digital display large screen at a glance,Accurate display,Real-time monitoring of the working status of the unitone-button start,Convenient.Quadruple protection of low oil pressure, high water temperature, high oil temperature and overload
