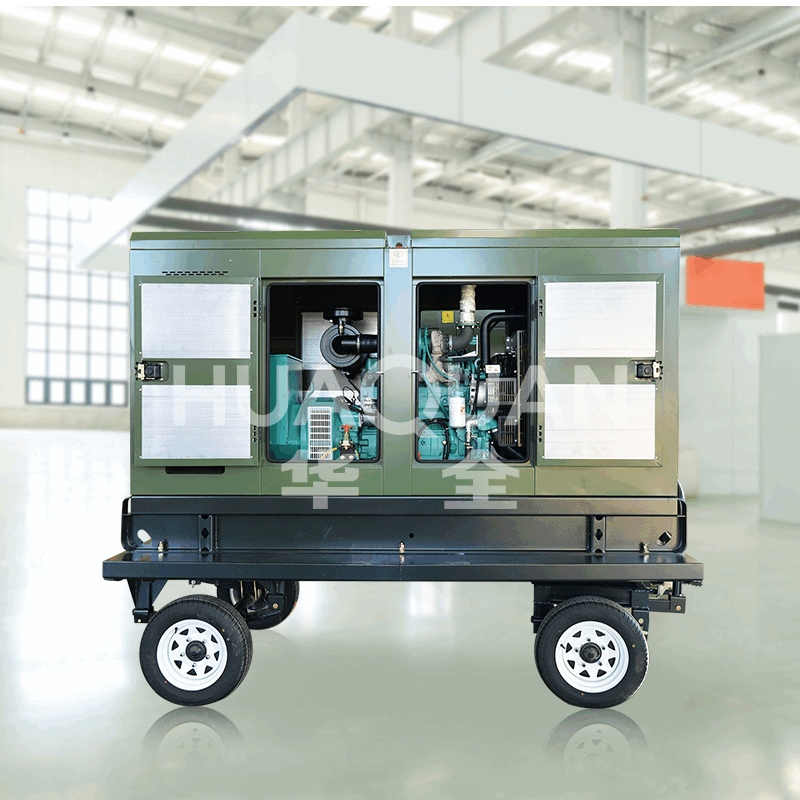

Huaquan mobile generators use a robust welded profile frame with integrated engineered connection nodes to achieve excellent strength and rigidity, and are equipped with a leaf spring suspension system to enhance stability during transportation.

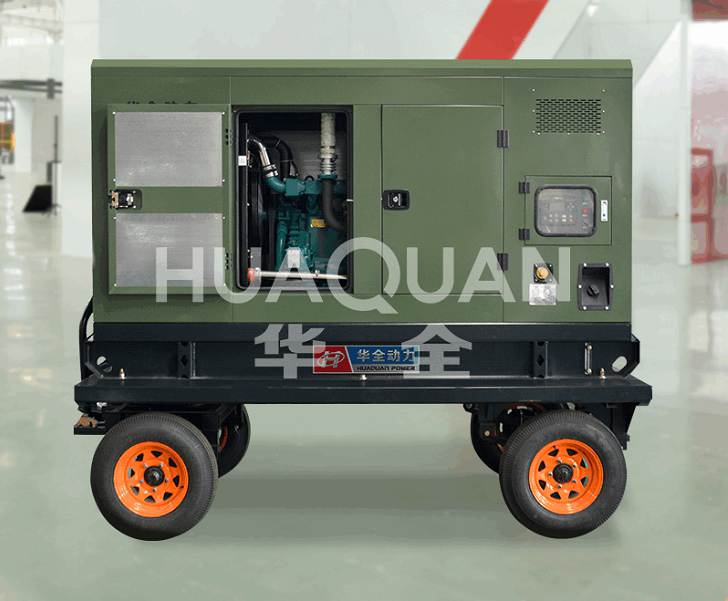

1. Huaquan mobile generators feature a robust welded profile frame integrating engineered connection nodes for superior strength and rigidity, and are equipped with a leaf spring suspension system for enhanced stability during transport.
2. Height-adjustable pin connections ensure compatibility with a variety of trailer vehicles. A straight-through tubular axle provides a compact and reliable base. Four-corner mechanical supports and a comprehensive triple braking system—including service brake, parking brake, and unhooking emergency brake—provide reliable braking performance under various operating conditions.
1.Multi-leaf springs with light-truck mounting brackets, enabling direct bolt-on generator attachment for reduced weight and simplified installation.
2.High-strength low-alloy steel axle tubing. Forged alloy steering knuckles enhance load capacity, while optimized spring seats reinforce axle-suspension rigidity.

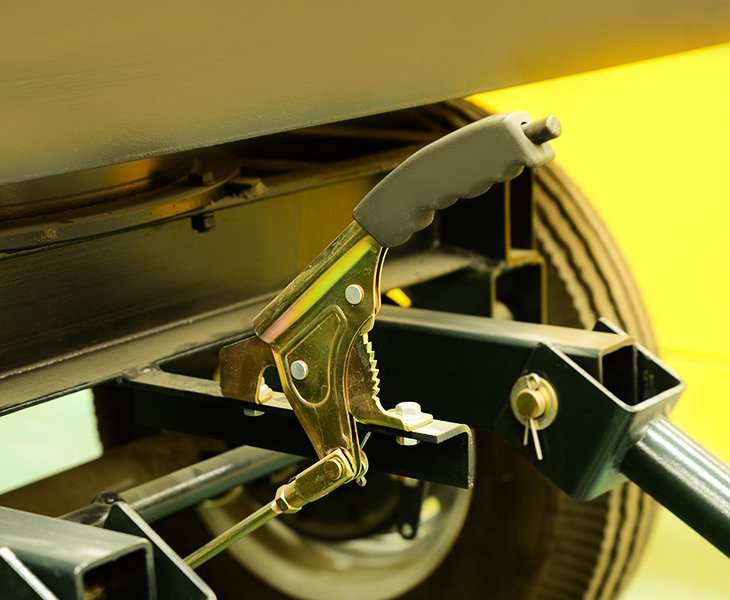

3.Lightweight truck-derived brake components. Parking brake with precision fine-tuning mechanism and cable-actuated transmission for flexible positioning.
4.Weight-optimized hubs with multi-specification rim compatibility.
5.Lightweight tubular drawbar with reversible orientation. Forged coupling rings substantially increase towing capacity.
30Kw Weifang Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ30GF 输出功率 Power Output 30KW/37.5kva 输出电压 Voltage Output 380V 输出电流 Current Output 54A 额定频率 Rated Frequency 60Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 700KG 开架尺寸 Open type size 1750*750*1300（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 1150KG 移动电站尺寸： Mobile power station size: 2550*1500*2150（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model HD-30L 品牌 Brand Huaquan 排量 Displacement / 柴油机额定功率 Diesel engine rated power 30.1KW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 205g/kWh 气缸 Cylinder 4/L Type 缸径*行程 Bore and Stroke 100115 mm 压缩比 Compression Ratio 19.0:1 启动方式 Starting System DC12V Electric/电启动 润滑油容量 Lube Capacity / 备用功率 Standby power 33KW 调速方式 Governor Type: machine control/机械调速 电机型号： Alternator Secifications Model: HQF-30 品牌 Brand Huaquan 额定功率 Rated Power 30KW/37.5KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 380V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4.Camel battery 2S maintenance-free series Low self-discharge rate -30℃ low temperature start Good electrical conductivity Improved starting power Strong power and long life high strength 5. Damping block Adopt rubber car type shock absorber to reduce the vibration of the unit, reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more durable, and prevents loosening during operation, and reduces the noise caused by vibration . 6. Pure copper brushless motor Strong power and lengthened silicon core Pure copper brushless motor Stronger c
30kW WC Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ30GF 输出功率 Power Output 30kW/37.5kVA 输出电压 Voltage Output 400V/230V 输出电流 Current Output 54A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 650KG 开架尺寸 Open type size 1800*750*1150（ LWH mm） 移动电站机组/重量 Mobile power station unit/weight 1150KG 移动电站尺寸： Mobile power station size: 2550*1500*2150（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model WP2.3D40E200/ WP3.2D36E310 / WP3.2D44E310 品牌 Brand WC 排量 Displacement 2.29( L) -3.17 ( L) 柴油机额定功率 Diesel engine rated power 33kW-36.8kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（full load） 195g/kWh 气缸 Cylinder 4/L Type 缸径*行程 Bore and Stroke 8992(mm) /98105(mm) 压缩比 Compression Ratio / 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 8.5(L)-9(L) 备用功率 Standby power 36kW-44kW 调速方式 Governor Type: Electronic regulatorl/电子调速 ECU central conrtol unit/电控 电机型号： Alternator Secifications Model: HQF-30 品牌 Brand Huaquan 额定功率 Rated Power 30kW/37.5KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 400V/230V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 4. ECU central control unit The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission standards ,energy saving. 5. Cooling water tank Closed water tank, high heat dissipation ef
50kW KMS Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ50GF 输出功率 Power Output 50kW/62.5kVA 输出电压 Voltage Output 380V 输出电流 Current Output 90A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 850KG 开架尺寸 Open type size 1950*790*1500（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 1200KG 移动电站尺寸： Mobile power station size: 2400*1500*2150（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model 4BTA3.9-G2/B3.9CS4-GT3/QSB3.9-G35 品牌 Brand KMS 排量 Displacement / 柴油机额定功率 Diesel engine rated power 50-70kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（100％Load） 195g/kWh 气缸 Cylinder 4/L Type 缸径*行程 Bore and Stroke 102*120mm 压缩比 Compression Ratio 17.3:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 10.9L 备用功率 Standby power 55-80KW 调速方式 Governor Type: Electric control/电子调速 电机型号： Alternator Secifications Model: HQF-50 品牌 Brand Huaquan 额定功率 Rated Power 50KW/62.5KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 380V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5.Camel battery 2S maintenance-free series Low self-discharge rate -30℃ low temperature start Good electrical conductivity Improved starting power Strong power and long life high strength 6. Damping block Adopt rubber car type shock absorber to reduce the vibration of the unit, reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more d
50Kw Weifang Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ50GF 输出功率 Power Output 50kW/62.5kVA 输出电压 Voltage Output 380V 输出电流 Current Output 90A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 800KG 开架尺寸 Open type size 1800*750*1300（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 1400KG 移动电站尺寸： Mobile power station size: 2550*1500*2150（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model HD-50L 品牌 Brand Huaquan 排量 Displacement / 柴油机额定功率 Diesel engine rated power 56KW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 205g/kWh 气缸 Cylinder 4/L Type 缸径*行程 Bore and Stroke 105125 mm 压缩比 Compression Ratio 19.0:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity / 备用功率 Standby power 62KW 调速方式 Governor Type: machine control/机械调速 电机型号： Alternator Secifications Model: HQF-50 品牌 Brand Huaquan 额定功率 Rated Power 50KW/62.5KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 380V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4.Camel battery 2S maintenance-free series Low self-discharge rate -30℃ low temperature start Good electrical conductivity Improved starting power Strong power and long life high strength 5. Damping block Adopt rubber car type shock absorber to reduce the vibration of the unit, reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more durable, and prevents loosening during operation, and reduces the noise caused by vibration . 6. Pure copper brushless motor Strong power and lengthened silicon core Pure copper brushless motor Stronger con
100kW Weifang Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ100GF 输出功率 Power Output 100kW/125kVA 输出电压 Voltage Output 380V 输出电流 Current Output 180A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 1200KG 开架尺寸 Open type size 2300*800*1380（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 1800KG 移动电站尺寸： Mobile power station size: 3000*1500*2280（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model HD-100L 品牌 Brand Huaquan 排量 Displacement / 柴油机额定功率 Diesel engine rated power 110KW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 205g/kWh 气缸 Cylinder 6/L Type 缸径*行程 Bore and Stroke / 压缩比 Compression Ratio / 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity / 备用功率 Standby power 121KW 调速方式 Governor Type: machine control/机械调速 电机型号： Alternator Secifications Model: HQF-100 品牌 Brand Huaquan 额定功率 Rated Power 100KW/125KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 380V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4.Camel battery 2S maintenance-free series Low self-discharge rate -30℃ low temperature start Good electrical conductivity Improved starting power Strong power and long life high strength 5. Damping block Adopt rubber car type shock absorber to reduce the vibration of the unit, reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more durable, and prevents loosening during operation, and reduces the noise caused by vibration . 6. Pure copper brushless motor Strong power and lengthened silicon core Pure copper brushless motor Stronger conducti
200kW Weifang Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ200GF 输出功率 Power Output 200kW/250kVA 输出电压 Voltage Output 380V 输出电流 Current Output 360A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight / 开架尺寸 Open type size / 移动电站机组/重量 Mobile power station unit/weight / 移动电站尺寸： Mobile power station size: / 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model HD-200L 品牌 Brand Huaquan 排量 Displacement / 柴油机额定功率 Diesel engine rated power 235KW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 205g/kWh 气缸 Cylinder 6/L Type 缸径*行程 Bore and Stroke / 压缩比 Compression Ratio / 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity / 备用功率 Standby power 268KW 调速方式 Governor Type: Electric control/电子调速 电机型号： Alternator Secifications Model: HQF-200 品牌 Brand Huaquan 额定功率 Rated Power 200KW/250KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 380V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5.Camel battery 2S maintenance-free series Low self-discharge rate -30℃ low temperature start Good electrical conductivity Improved starting power Strong power and long life high strength 6. Damping block Adopt rubber car type shock absorber to reduce the vibration of the unit, reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more durable, and prevents loosening during operation, and reduces the noise caused by vibration . 7
50kW WC Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ50GF 输出功率 Power Output 50kW/62.5kVA 输出电压 Voltage Output 400V/230V 输出电流 Current Output 90A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 800 (KG) 开架尺寸 Open type size 2100*790*1241（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 1300 (KG) 移动电站尺寸： Mobile power station size: 2550*1500*2150（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model WP4.1D66E200/ WP4.1D66E310 品牌 Brand WC 排量 Displacement 4.09（ L ） 柴油机额定功率 Diesel engine rated power 60kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（full load） 195g/kWh 气缸 Cylinder 4/L Type 缸径*行程 Bore and Stroke 105118 mm 压缩比 Compression Ratio 17.5:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 13（ L ） 备用功率 Standby power 66kW 调速方式 Governor Type: Electronic regulatorl/电子调速 ECU central control unit/电控 电机型号： Alternator Secifications Model: HQF-50 品牌 Brand Huaquan 额定功率 Rated Power 50kW/62.5KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 400V/230V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 4. ECU central control unit The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission standards ,energy saving. 5. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, inte
30kW KMS Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ30GF 输出功率 Power Output 30kW/37.5kVA 输出电压 Voltage Output 380V 输出电流 Current Output 54A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 700KG 开架尺寸 Open type size 1830*770*1640（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 1050KG 移动电站尺寸： Mobile power station size: 2400*1500*2150（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model 4BTA3.9-G1/ 4BTA3.9-G2/QSB3.9-G33 品牌 Brand KMS 排量 Displacement / 柴油机额定功率 Diesel engine rated power 36kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（100％Load） 195g/kWh 气缸 Cylinder 4/L Type 缸径*行程 Bore and Stroke 102*120mm 压缩比 Compression Ratio 17.3:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 10.9L 备用功率 Standby power 40kW 调速方式 Governor Type: Electric control/电子调速 电机型号： Alternator Secifications Model: HQF-30 品牌 Brand Huaquan 额定功率 Rated Power 30KW/37.50KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 380V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5.Camel battery 2S maintenance-free series Low self-discharge rate -30℃ low temperature start Good electrical conductivity Improved starting power Strong power and long life high strength 6. Damping block Adopt rubber car type shock absorber to reduce the vibration of the unit, reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more durabl
100kW KMS Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ100GF 输出功率 Power Output 100kW/125kVA 输出电压 Voltage Output 380V 输出电流 Current Output 180A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 1100KG 开架尺寸 Open type size 2200*860*1371（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 1900KG 移动电站尺寸： Mobile power station size: 3000*1500*2280（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model QSB3.9-G39/B5.9CS4-GT2/6BTA5.9-G2 QSB5.9-G30 品牌 Brand KMS 排量 Displacement / 柴油机额定功率 Diesel engine rated power 100-115kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 195g/kWh 气缸 Cylinder 6/L Type 缸径*行程 Bore and Stroke 102*120mm/ 107*124mm 压缩比 Compression Ratio 17.3:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 10.9-16.4L 备用功率 Standby power 110-128kW 调速方式 Governor Type: Electric control电子调速/ ECU电控 电机型号： Alternator Secifications Model: HQF-100 品牌 Brand Huaquan 额定功率 Rated Power 100KW/125KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 380V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5. ECU central control unit The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission standards ,energy savi
100kW WC Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ100GF 输出功率 Power Output 100kW/125kVA 输出电压 Voltage Output 430V/230V 输出电流 Current Output 180A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 1500 (KG) 开架尺寸 Open type size 2500*800*1390（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 2100 (KG) 移动电站尺寸： Mobile power station size: 3000*1500*2280（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model WP4.1D113E200 / WP4.6ND120E310 品牌 Brand WC 排量 Displacement 4.09 (L) / 4.58 (L) 柴油机额定功率 Diesel engine rated power / /110kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 195g/kWh 气缸 Cylinder 4/L Type 缸径*行程 Bore and Stroke 105*118 (mm) 压缩比 Compression Ratio 17.5:1/16.9:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity / /16 (L) 备用功率 Standby power 113(kW)-120 (kW) 调速方式 Governor Type: Electric control电子调速/ ECU电控 电机型号： Alternator Secifications Model: HQF-100 品牌 Brand Huaquan 额定功率 Rated Power 100kW/125kVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 400V/230V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5. ECU central control unit The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission
120kW KMS Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ120GF 输出功率 Power Output 120kW/150kVA 输出电压 Voltage Output 380V 输出电流 Current Output 216A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 1200KG 开架尺寸 Open type size 2380*880*1300（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 2000KG 移动电站尺寸： Mobile power station size: 3200*1500*2350（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） QSB5.9-G3 发动机型号： Engine Model B5.9CS4-GT1/6BTAA5.9-G2/6BTAA5.9-G12 QSB5.9-G3/QSB5.9-G31 品牌 Brand KMS 排量 Displacement / 柴油机额定功率 Diesel engine rated power 129-140kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 195g/kWh 气缸 Cylinder 6/L Type 缸径*行程 Bore and Stroke 102*120mm/ 107*124mm 压缩比 Compression Ratio 17.3:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 16-16.4L 备用功率 Standby power 130-150kW 调速方式 Governor Type: Electric control电子调速/ ECU电控 电机型号： Alternator Secifications Model: HQF-120 品牌 Brand Huaquan 额定功率 Rated Power 120KW/150KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 380V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5. ECU central control unit The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission s
200kW WC Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ200GF 输出功率 Power Output 150kW/187.5kVA 输出电压 Voltage Output 430V/230V 输出电流 Current Output 360A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 2100 (KG) 开架尺寸 Open type size 2950*884*1494（LWH mm） 移动电站机组/重量 Mobile power station unit/weight 2600 (KG) 移动电站尺寸： Mobile power station size: 3800*1900*2530（LWH mm） 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model WP10D238E200 / WP10D264E200 WP7D240E310 / WP7D264E310 WP10D264E350 品牌 Brand WC 排量 Displacement 7.47 (L) / 9.73 (L) 柴油机额定功率 Diesel engine rated power 216kW-240kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 195g/kWh 气缸 Cylinder 6/L Type 缸径*行程 Bore and Stroke 105*130 (mm) / / 压缩比 Compression Ratio 17.0:1/17.5:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 24(L) 备用功率 Standby power 238(kW)-264 (kW) 调速方式 Governor Type: Electric control电子调速/ ECU电控 电机型号： Alternator Secifications Model: HQF-200 品牌 Brand Huaquan 额定功率 Rated Power 200kW/250kVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 400V/230V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5. ECU central control unit The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilizati
