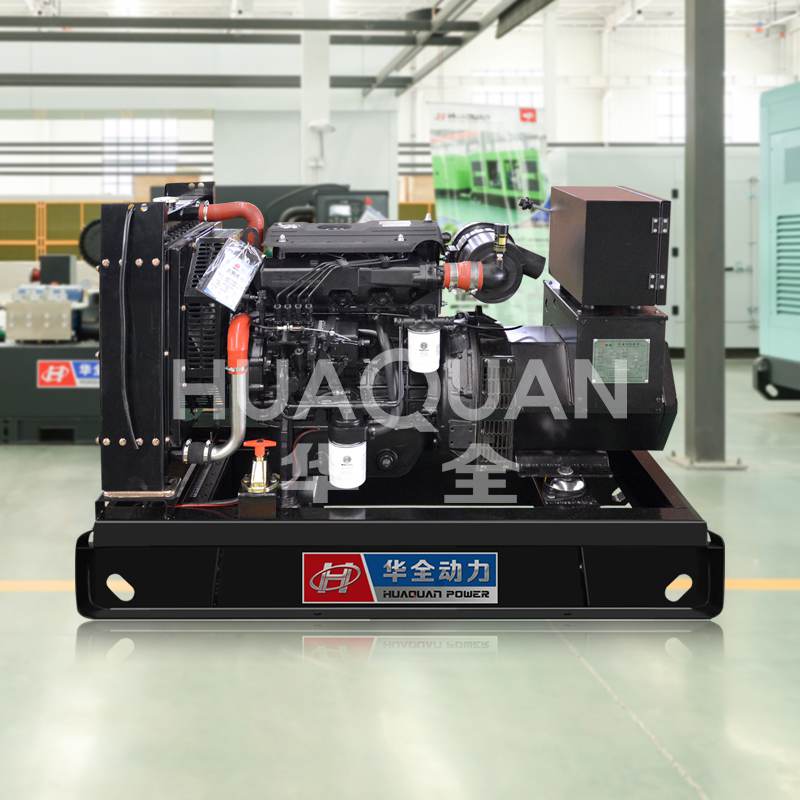

25kVA/20kW WC series diesel generator set

Roll over image to zoom in

< >

About this item

Payment method

  • 1、We accept T/T,and 30% as the deposit,the balance payment should be paid before shipping.
  • 2、We accept albaba credit guarantee payment.
  • 3、We accept bank wire payment.

Description

Parametric

Service



20kW WC Diesel Generator Technical Data
机组规格型号 GenSet’s Specifications HQ20GF
输出功率 Power Output 20kW/25kVA
输出电压 Voltage Output 400V/230V
输出电流 Current Output 36A
额定频率 Rated Frequency 50Hz
额定转速 Rated Speed 1500rpm
开架机组/重量  Open frame unit weight /
开架尺寸 Open type size /
静音箱机组/重量 Static speaker unit weight /
静音尺寸: Silent type size: /
噪声(LP7m) Acoustic Noise(LP7m): 95dB(A)
发动机型号: Engine Model WP2.3D25E200
品牌 Brand  WC
排量 Displacement 2.29(L)
柴油机额定功率 Diesel engine rated power 23KW
燃油等级(标准) Fuel Grade (Standard)0#Light Diesel/轻柴油
燃油消耗(满负载) Fuel Consumption(full load) 195g/kW·h
气缸 Cylinder 4/L Type
缸径*行程 Bore and Stroke 89*92 (mm)
压缩比 Compression Ratio /
启动方式 Starting System DC24V Electric/电启动
润滑油容量 Lube Capacity 8.5(L)
备用功率 Standby power 25kW
调速方式 Governor Type: Electronic regulator/电子调速
电机型号: Alternator Secifications Model: HQF-20
品牌 Brand Huaquan
额定功率 Rated Power 20kW
功率因数 Power Factor COSΦ=0.8(Lag)/滞后
额定电压 Rated Voltage 400V/230V
绝缘等级 Insulation Class H
过载能力 Over Capacity 110%
转速 Speed(RPM) 1500
防护等级 Indicating of Protection IP22
接线方式 Wiring Mode 3Phase 4Wires Y Type
调节方式 Governor AVR(Automatic Voltage Regulator)

发动机还可选:

型号Engine Model 功率Power 转速Speed
WP3.2D28E310 23/25 1500rpm


2. High pressure oil pump
The fuel injection pump is one of the main components of the engine
Huaquan engine mainly uses Wuxi Weifu oil pump、Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、Nanyue Hengyang oil pump and so on.


3. Electronic regulator
No need to manually adjust the throttle,The electronic regulator automatically adjusts the throttle,Stable speed, stable voltage and fuel saving.

4. ECU central control unit
The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission standards ,energy saving.


5. Cooling water tank

Closed water tank, high heat dissipation efficiency Cooling protection, integrated design



6.Camel battery
2S maintenance-free series
Low self-discharge rate -30℃ low temperature start Good electrical conductivity Improved starting power  Strong power and long life high strength



7. Damping block
Adopt rubber car type shock absorber to reduce the vibration of the unit, reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more durable, and prevents loosening during operation, and reduces the noise caused by vibration.


8. Pure copper brushless motor

  Strong power and lengthened silicon core
  Pure copper brushless motor

  Stronger conductivity, eliminating the shortcomings of brush motors that often replace carbon brushes or do not generate electricity for a long time
  Maintenance-free, stable operating voltage, and sufficient power output.

9. Plastic spray base frame

  5mm thick channel steel base frame,multi-fold bending, enhance the ability to withstand impact.   Independent research and development of the chassis shape, unique gaps, effectively prevent water accumulation.   Pickling and phosphating before spraying greatly extend the service life compared to direct spraying.

LED digital display large screen at a glance,Accurate display,Real-time monitoring of the working status of the unitone-button start,Convenient.Quadruple protection of low oil pressure, high water temperature, high oil temperature and overload
