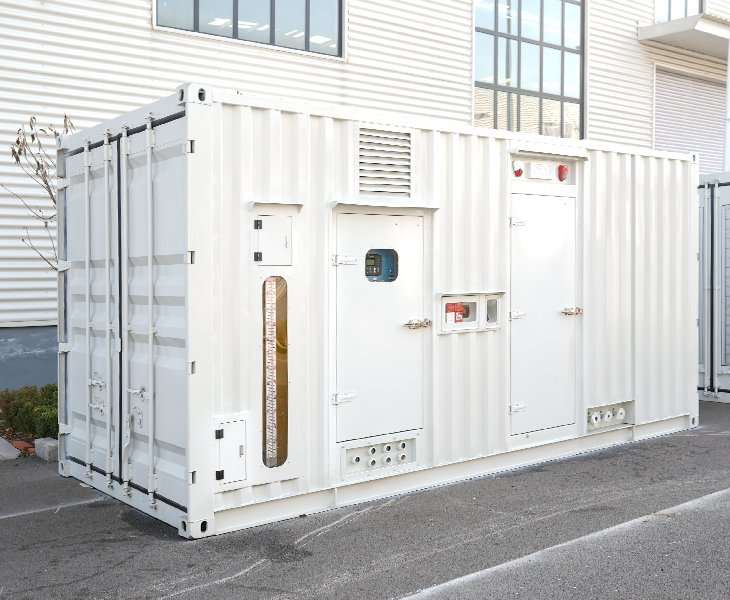

Huaquan containerized generators are modular power generation devices integrated into a standard shipping container. Our containers feature a steel structure, modular design, and are galvanized or coated for effective rust and corrosion protection. Sound insulation and silencers can be installed inside the container to effectively reduce noise. The generator set can be equipped with ATS (Automatic Transfer Switch) and A8 Cloud (Remote Control System) for remote monitoring and maintenance.
1. Huaquan container generators are modular power generation devices externally integrated within a standard shipping container. Various internal modules can be customized to meet specific customer requirements.
2. Huaquan containers utilize a steel structure with galvanized or coated treatment for effective rust and corrosion protection. The internal design is modular, tailored to customer needs. The container can be equipped with insulation, heating, and cooling systems to easily handle various climates.
3. It can also be equipped with Huaquan's independently developed A8 Cloud (remote control system) for remote monitoring and maintenance of the generator set.

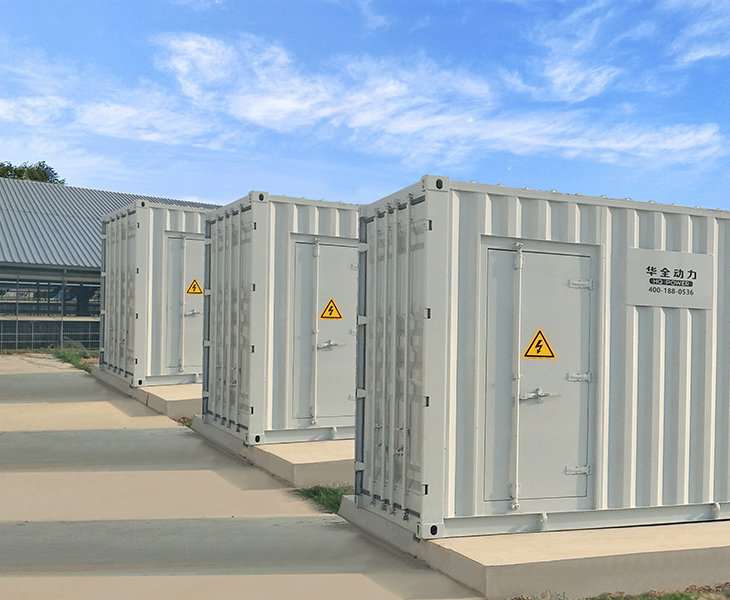

1.Container body customization, including standard, silent, explosion-proof, and automated types. The container is of standard size (20 feet/40 feet); non-standard types are customized according to customer requirements.
2.Container paint color selection; customized customers can add their logo according to their needs.
3. Engines of various power, models, and brands can be customized according to customer applications to meet their actual needs. It is also possible to choose to equip the generator set with Huaquan's independently developed A8 Cloud (remote control system) to achieve remote monitoring and maintenance.
300kW WC Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ300GF 输出功率 Power Output 300kW/375kVA 输出电压 Voltage Output 430V/230V 输出电流 Current Output 540A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 2400 (KG) 开架尺寸 Open type size 3100*950*1520（LWH mm） 集装箱电站机组/重量 Container power plant unit/weight / 集装箱电站尺寸： Container power station size: / 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model WP12D353E200 / WP13D385E200 WP13D385E310 品牌 Brand WC 排量 Displacement 11.6 (L)/12.5 (L) 柴油机额定功率 Diesel engine rated power 288kW-360kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 195g/kWh 气缸 Cylinder 6/L Type 缸径*行程 Bore and Stroke 126*155 (mm) / 127*165 (mm) 压缩比 Compression Ratio 15.0:1/16.0:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 36(L) 备用功率 Standby power 353(kW)-385(kW) 调速方式 Governor Type: Electric control电子调速/ ECU电控 电机型号： Alternator Secifications Model: HQF-300 品牌 Brand Huaquan 额定功率 Rated Power 300kW/375kVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 400V/230V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5. ECU central control unit The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission st
500kW WC Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ500GF 输出功率 Power Output 500kW/625kVA 输出电压 Voltage Output 430V/230V 输出电流 Current Output 900A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 7000 (KG) 开架尺寸 Open type size 3400*1390*1780（LWH mm） 集装箱电站机组/重量 Container power plant unit/weight / 集装箱电站尺寸： Container power station size: / 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model 6M33D572E200 品牌 Brand WC 排量 Displacement 19.6 (L) 柴油机额定功率 Diesel engine rated power 520kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 195g/kWh 气缸 Cylinder 6/L Type 缸径*行程 Bore and Stroke 150*185 (mm) 压缩比 Compression Ratio 15.0:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 61(L) 备用功率 Standby power 572(kW) 调速方式 Governor Type: Electronic regulator/电调 电机型号： Alternator Secifications Model: HQF-500 品牌 Brand Huaquan 额定功率 Rated Power 500kW/625kVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 400V/230V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5.Camel battery 2S maintenance-free series Low self-discharge rate -30℃ low temperature start Good electrical conductivity Improved starting power Strong power and long life high strength 6. Damping block Adopt rubber car type shock absorber to reduce the vibration of the unit, reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more durable, and prevent
1000kW KMS Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ1000GF 输出功率 Power Output 1000kW/1250kVA 输出电压 Voltage Output 380V 输出电流 Current Output 1800A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 9000KG 开架尺寸 Open type size 6800*2200*2300（LWH mm） 集装箱电站机组/重量 Container power plant unit/weight / 集装箱电站尺寸： Container power station size: / 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model KTA50-G3/KTA50-G12/KTA38-G9A KTA50-G3E/QSK38-G29/QSK38-G5 QSK38-G5 品牌 Brand KMS 排量 Displacement / 柴油机额定功率 Diesel engine rated power 1100-1148kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 195g/kWh 气缸 Cylinder 6/L Type 缸径*行程 Bore and Stroke 159*159mm 压缩比 Compression Ratio / 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity / 备用功率 Standby power 1210-1254kW 调速方式 Governor Type: Electric control电子调速/ ECU电控 电机型号： Alternator Secifications Model: HQF-1000 品牌 Brand Huaquan 额定功率 Rated Power 1000KW/1250KVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 380V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5. ECU central control unit The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission standards ,energy saving. 6.Came
1000kW WC Diesel Generator Technical Data 机组规格型号 GenSets Specifications HQ1000GF 输出功率 Power Output 1000kW/1250kVA 输出电压 Voltage Output 430V/230V 输出电流 Current Output 1800A 额定频率 Rated Frequency 50Hz 额定转速 Rated Speed 1500rpm 开架机组/重量 Open frame unit weight 12000 (KG) 开架尺寸 Open type size 6550*1940*1920（LWH mm） 集装箱电站机组/重量 Container power plant unit/weight / 集装箱电站尺寸： Container power station size: / 噪声（LP7m） Acoustic Noise（LP7m）： 95dB（A） 发动机型号： Engine Model 12M33D1210E200/ 12M33D1240E310 品牌 Brand WC 排量 Displacement 39.2 (L) 柴油机额定功率 Diesel engine rated power 1100kW-1130kW 燃油等级（标准） Fuel Grade （Standard）0#Light Diesel/轻柴油 燃油消耗（满负载） Fuel Consumption（Full Load） 195g/kWh 气缸 Cylinder 12/L Type 缸径*行程 Bore and Stroke 150*185 (mm) 压缩比 Compression Ratio 15.0:1 启动方式 Starting System DC24V Electric/电启动 润滑油容量 Lube Capacity 146 (L) 备用功率 Standby power 1210(kW)-1240(kW) 调速方式 Electronic regulator/电调 / ECU/电控 电机型号： Alternator Secifications Model: HQF-1000 品牌 Brand Huaquan 额定功率 Rated Power 1000kW/1250kVA 功率因数 Power Factor COS=0.8（Lag）/滞后 额定电压 Rated Voltage 400V/230V 绝缘等级 Insulation Class H 过载能力 Over Capacity 110% 转速 Speed(RPM) 1500 防护等级 Indicating of Protection IP22 接线方式 Wiring Mode 3Phase 4Wires Y Type 调节方式 Governor AVR（Automatic Voltage Regulator） 2. High pressure oil pump The fuel injection pump is one of the main components of the engine Huaquan engine mainly uses Wuxi Weifu oil pump、 Beijing Tianwei Oil Pump、Longkou Steyr Oil Pump、 Nanyue Hengyang oil pump and so on. 3. Cooling water tank Closed water tank, high heat dissipation efficiency Cooling protection, integrated design 4. Electronic regulator No need to manually adjust the throttle，The electronic regulator automatically adjusts the throttle，Stable speed, stable voltage and fuel saving. 5. ECU central control unit The diesel is atomized, mixed with the air in the combustion chamber, and injected into the combustion chamber according to a certain pressure, time, and rate of fire, to achieve the effect of precise fuel injection, lower fuel consumption, higher fuel utilization, and meet the national three emission standards ,energy saving. 6.Camel batter
